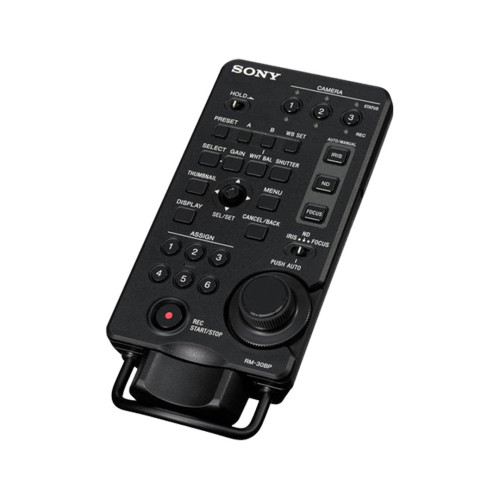

Sony RM-30BP Wired Remote Controller

฿53900.00

จำนวน

ซื้อเลย

หยิบลงตะกร้า

หมวดหมู่ : SONY
รหัสสินค้า : 001563

รายละเอียดสินค้า Sony RM-30BP Wired Remote Controller

Sony RM-30BP Wired Remote Controller

RM-30BP เป็นรีโมทที่ใช้ในการควบคุมกล้องวีดีโอ

Works with HXR-NX5R and PXW-FS7 v4.0
Works with Select Sony Camcorders
Provides Focus, Iris, and Zoom Control
Provides Camera Control
6 x Assignable Buttons
Programmed Buttons
Playback and Multicamera Control
Built-In Zoom Rocker and Adjustment Knob
Daisy-Chain Two Remotes Together
Works in Conjunction with Sony MCX-500

รีโมทสำหรับควบคุมกล้องวีดีโอ Sony RM-30BP สามารถใช้งานร่วมกับ Switcher SONY MCX-500 และ กล้องวีดีโอ SONY HXR-NX5R ได้เป็น Solution เหมาะสำหรับการ Live streaming ที่ใช้กล้องหลายตัวและต้องการควบคุมเพียงจุดเดียว RM-30BP ถือว่าตอบโจทย์มาก เพราะสามารถควบคุมกล้องวีดีโอได้มากสุดถึง 3 ตัวพร้อมฟังชั่นก์ในการควบคุมการ ZOOM FOCUS IRIS และฟังก์ชั่นทางเทคนิคที่ลึกกว่านั้นคือ ปรับ Colur balance,white balance และฟังก์ชั่นอื่น ๆ อีกมากมายครับ

Description

Sony's RM-30BP Remote Controller features a compact form and can control most of the functions of your compatible NX5R or FS7 (v4.0) camera. The remote enables control of the one-push auto, manual focus, iris, and zoom of your lens. It also allows you to control the recording/display functions of your camera, as well as shutter speed and white balance adjustment. You can assign six buttons on the controller and control the functions and playback of up to three cameras, individually or simultaneously.

The RM-30BP is the successor to the RM-1000BP, the industry’s first comprehensive, multifunctional remote commander. Ideal for freelancers and small-budget productions, the lightweight remote can be handheld, placed on a table or attached to a tripod arm for operation. The RM-30BP can control most camera functions including:

• Lens control: one push auto / manual focus, iris and zoom control

• Camera control: recording / display functions, shutter speed, white balance - including six assignable buttons

• Playback and multi camera control (up to 3 cameras)

The RM-30BP can also be connected to the new MCX-500 for multi camera control directly from the switcher, and is compatible with the HXR-NX5R and PXW-FS7 v4.0, with plans to introduce compatibility for other Sony camcorders.

Sony RM-30BP Overview

Sony's RM-30BP Remote Controller features a compact form and can control most of the functions of your compatible NX5R or FS7 (v4.0) camera. The remote enables control of the one-push auto, manual focus, iris, and zoom of your lens. It also allows you to control the recording/display functions of your camera, as well as shutter speed and white balance adjustment. You can assign six buttons on the controller and control the functions and playback of up to three cameras, individually or simultaneously.

The remote incorporates an adjustment knob that can be set to control your camera's focus, iris, or electronic ND selection (if your camera features electronic ND). At the bottom of the unit is a zoom rocker with protective bar to help prevent accidental activation. You can daisy-chain together two RM-30BP units, allowing either remote to control your camera. You can also connect the remote to a Sony MCX-500, allowing for that switcher to control up to three cameras.

Status LEDs
A green status display on the unit indicates the condition of the connected and selected cameras. The unit also incorporates red/green record LEDs for each of the three cameras you may be connected to.
Pre-Programmed Buttons
The remote incorporates the following pre-programmed buttons:
Hold (slide switch)
Camera selector keys
Iris toggle
ND toggle
Focus toggle
3-Position slide switch (focus, iris, ND)
Rec Start/Stop
Assign key
Thumbnail key
Select/Set lever
Menu key
Cancel/Back key
Display key
Preset key
WB Preset A
WB Preset B
WB set
Shutter key
WB key
Gain key
Select key
Adjustment Knob

Focus: Pressing the center of the adjustment knob temporarily activates auto focus adjustment (PUSH AUTO FOCUS). Please note that the rotation and speed of the focus adjustment will vary depending on the camcorder being used. You can change the direction of the focus knob if you wish.

Electronic ND: If the connected camcorder has an electronically switchable ND filter you can adjust the density of the ND filter by using the adjustment knob.

Iris: Please note that the rotation and speed of the iris adjustment will vary depending on the camcorder being used. You can change the direction of the iris knob if you wish.

Zoom Rocker

The zoom rocker is protected from incidental activation by a protective bar. You can adjust the speed and direction of the zoom lever on the unit.

Connection Ports

Camera: The remote features three camera ports, allowing you to control up to three cameras either individually or simultaneously. Additional cables, not included, are required for this configuration.

The option connector enables connecting the RM-30BP to an MCX-500.

Remote: This connector allows you to daisy-chain two units together.
